Elonroad, in collaboration with Sweden’s Lund University, has been commissioned to build 1,000 meters of road on Getingevägen, in the city center of Lund. EVolution Road is a three-year project that the Swedish Transport Administration intends to use as a demonstration site.

elonroad-rail_2000

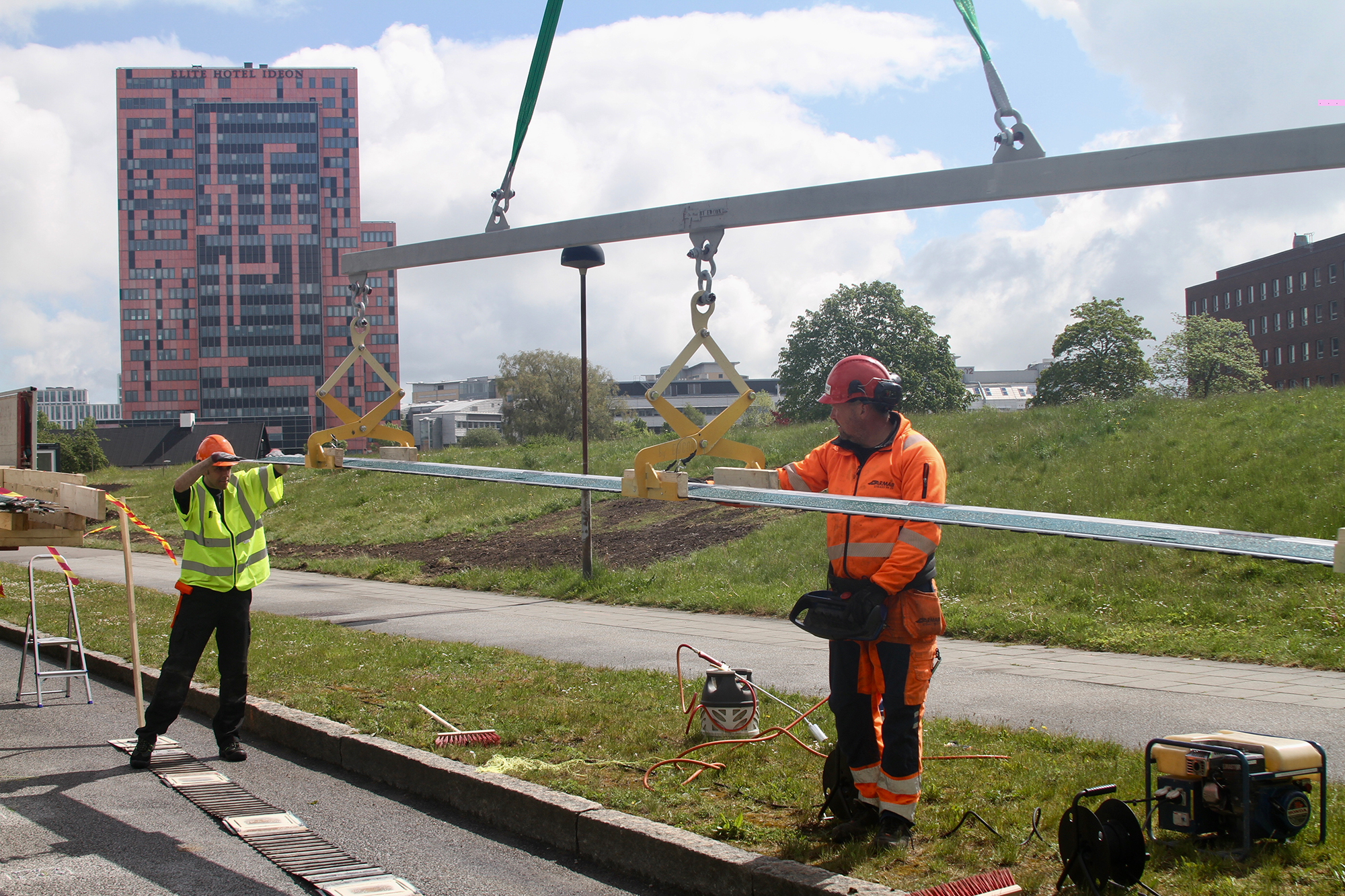

The aluminium charging rail is lowered into place.

The high-tech electric road concept charges all types of electric vehicles when parked as well as when driving. The 1,000-meter test stretch in Lund is being built and will be in operation this June. It will be the first electric road system to be placed in an urban environment.

Collaboration begins in 2018

In October 2018, Elonroad met with Hydro to discuss delivery of an extruded aluminum profile – a “road profile” – that could contain electronics and a rail for charging electric cars while driving.

Such a profile would need to be precisely machined along its entire length, as well as its top and bottom, so that the electronics, cables, positive leads could be fitted and the rail mounted.

“It is very interesting and stimulating to cooperate with Elonroad and thus contribute to the sustainable transport of the future on our roads,” says Hans Fredriksson, who has led the project work for Hydro.

elonroad-main_2000
The Elonroad aluminium charging rail is embedded in the road.

Karin Ebbinghaus, Elonroad’s chief executive officer, says: “We highly appreciate the experience and craftmanship together with the professionality that Hydro shows us, even if we are a small start-up. Our cooperation has been crucial to be able to meet our targets.”

Hydro’s aluminium manufacturing plant in Vetlanda began delivery of the unique product this year. It has supplied 500 meters of the "road profile" as well as 1,000 meters of positive leads as finished components. These processed components correspond to 500 meters of electrified road.

Part of a fossil-free transport system

Elonroad founder Dan Zethraeus says that one of the most important benefits of electric roads is that such roads can significantly reduce the size of the vehicle’s battery – and the weight of the car. “This allows you to carry more goods or passengers. Charging while driving also eliminates the need for downtime to charge the batteries, which saves time,” he says.

Other advantages:

  • It uses existing road infrastructure
  • It has high efficiency, which can lower costs
  • Electricity can be produced from renewable sources such as solar, wind and hydroelectric power

How it works

Elonroad’s concept involves a conductive rail. It can be laid on top of the road or built into the road.

The on-top version is 4 cm high and 35 cm wide, with inclined sides of only 10 degrees to make it smooth when changing lanes. It is bonded to the asphalt via mounting plates. The second alternative – the submerged rail built into the asphalt – has a flat top aligned with the surrounding asphalt. It is 25 cm wide and 5 cm deep. It also works well on highways.

When driving, a conductive pickup under the vehicle connects to the electric rail via sliding contacts. The rail is only active when covered by the vehicle, making it safe in a city environment.

The rail is powered by power stations located at the side of the road, and can deliver up to 300 kW with 97% efficiency while driving. In addition to providing propulsion, this is enough power to provide three kilometers of driving distance for every one kilometer of driving on the electric road.

elonroad-trucker_2000
The Elonroad aluminium charging rail can be embedded in any road.
